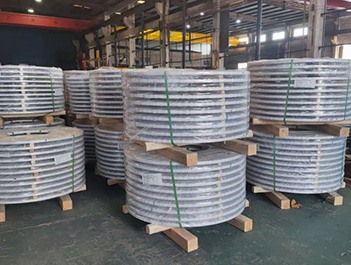

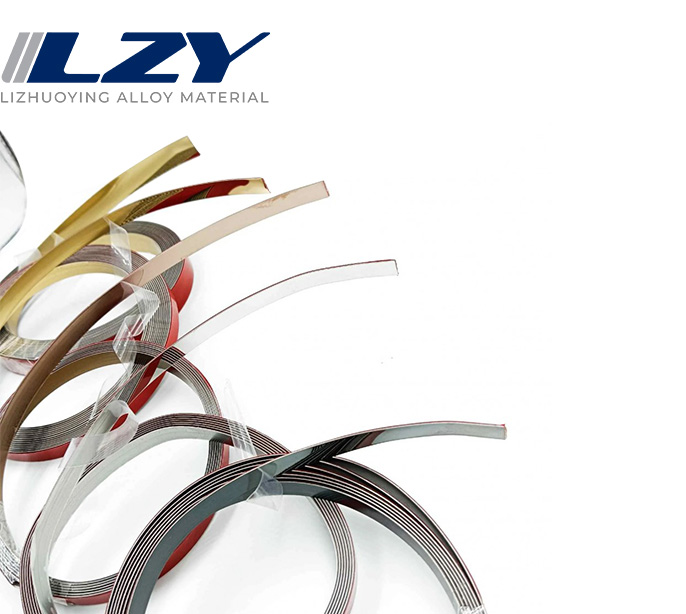

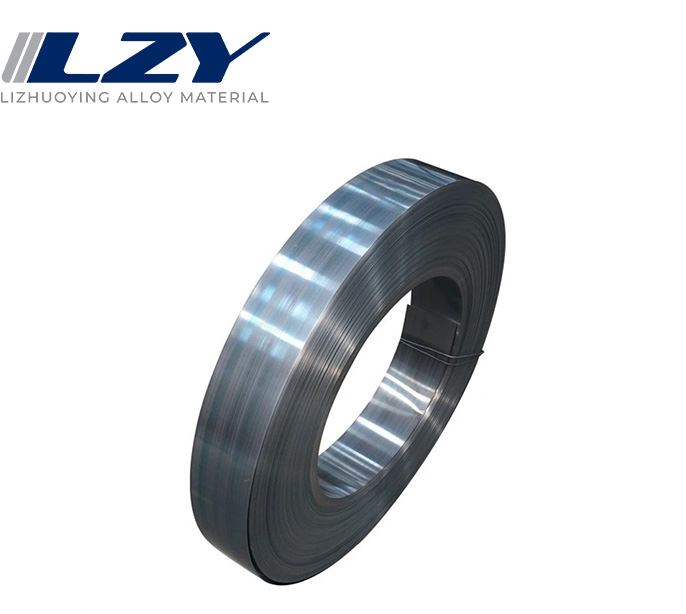

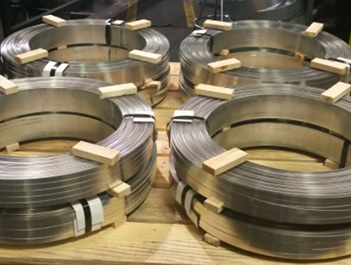

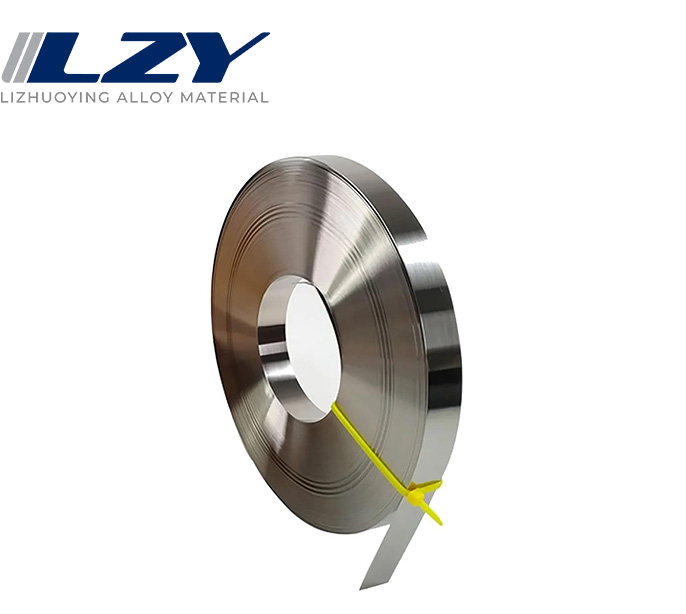

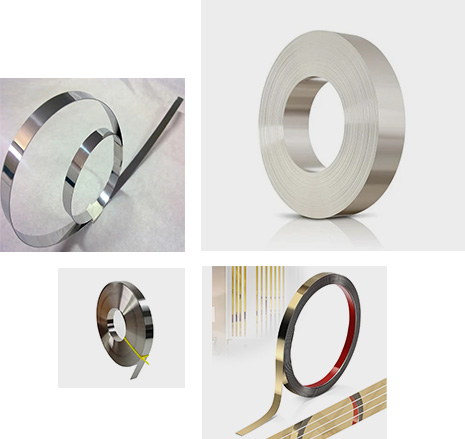

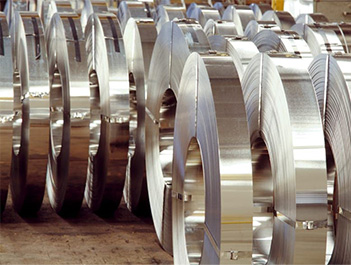

Stainless Steel Strip

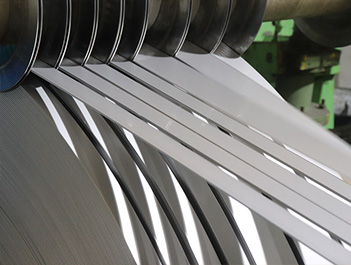

Stainless steel strip, also called stainless steel strip coil, or stainless steel slitting coil，is a narrow strip coil by slitting from the stainless steel sheet or coil.

Stainless steel strip has the feathers of durable and corrosion-resistant. It is mainly used in construction, manufacturing, home, and commercial cooking equipment and appliances.

Whatsapp Send E-mail

Specification:

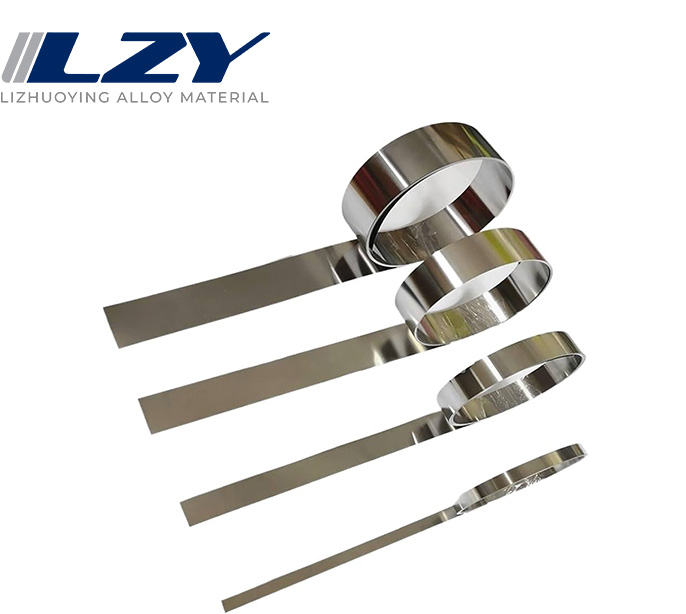

A.Precision stainless steel strip

Thickness range: 0.02mm-0.5mm
Thickness tolerance:
Thickness ≤0.1mm ±2.5um
Thickness ≤0.5mm ±5um
Uniformity of hardness: ±10HV
Width tolerance:
Width ≤ 30mm ±0.015mm
Width ≤ 100mm ±0.03mm
Width ≤ 250mm ±0.05mm
Width ≤ 610 mm ±0.1mm
Straightness: 1-2 IU
The burr height and edge quality:
Thickness 0.02mm-0.1mm ≤6%
Thickness 0.1mm-0.5mm ≤5%
Special requirements for burr or round edge
Surface:
TR---Cleaning and degreasing after cold rolling
BA---Bright annealing after cold rolling
Inside diameter: 300/400/508mm
Outside diameter: Max 1500mm

B.Cold-rolled stainless steel strip

Thickness range: ≥0.3mm
Thickness tolerance:
Thickness ≤0.6mm ±40um
Thickness ≤1.0mm ±50um
Uniformity of hardness: No request
Width tolerance: Width ≤ 1524mm ±5mm
Straightness: Min 3 IU
The burr height and edge quality:
Thickness 0.4mm Burr height 0.03mm
Thickness 3.0mm Burr height 0.09mm
No Special requirement to burr or round side
Surface:
TR---Cleaning and degreasing after cold rolling
BA---Bright annealing after cold rolling
Inside diameter: 300/400/508mm
Outside diameter: Max 1500mm

Introduce:

Standard AISI Types of Edges

a.No.1 Round Edge: Approximate radius equal to 1/2the thickness

b.No.2 Mill Edge: Hot rolled or cold rolled edge, naturally formed

c.No.3 Slit Edge: Approximately square edge,slitting burr intact

d.No.4 Round-Cornered Edge: Rounded edge, slitting fracture may be visible

e.No.5 Deburred -Edge: A safety edge--No.3 edge with the slitting burr rolled over

f.No.6 Square Edge: Square with radial corners, a slitting fracture may be visible

Chemical Composition

Type	Grade	Grade	Chemical Component %
Type	Grade	Grade	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
Austenitic	201	SUS201	≤0.15	16.00-18.00	3.50-5.50	5.50-7.50	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	202	SUS202	≤0.15	17.00-19.00	4.00-6.00	7.50-10.00	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	301	1.4310	≤0.15	16.00-18.00	6.00-8.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	≤0.10	-
	304	1.4301	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304L	1.4307	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304H	1.4948	0.04-0.10	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309	1.4828	≤0.20	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309S	*	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	310	1.4842	≤0.25	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	310S	*	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	314	1.4841	≤0.25	23.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	1.50-3.00	-	-	-
	316	1.4401	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316L	1.4404	≤0.030	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316Ti	1.4571	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	0.1	Ti5（C+N)~0.70
	317	*	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	317L	1.4438	≤0.030	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	321	1.4541	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5（C+N)-0.70
	321H	*	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5（C+N)~0.70
	347	1.4550	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C%-1.10
	347H	1.494	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030		≤1.00	-	-	Nb≥10*C%-1.10
	XM-19	Nitronic50	≤0.06	20.50-23.50	11.50-13.50	4.0-6.0	≤0.045	≤0.030	1.50-3.00	≤1.00	-	0.2-0.4	Nb：0.10-0.30 V：0.10-0.30
	904L	N08904	≤0.02	19.0-23.0	23.0-28.0	4.0-5.0	≤0.045	≤0.035	-	≤1.00	-	0.1	Cu:1.0-2.0
Duplex	2205	S32205	≤0.03	22.0-23.0	4.5-6.5	≤2.00	≤0.030	≤0.020	3.0-3.5	≤1.00	-	0.14-0.20	-
	2507	S32750	≤0.03	24.0-26.0	6.0-8.0	≤1.20	≤0.035	≤0.020	3.0-3.5	≤0.80	0.5	0.24-0.32	-
	*	S32760	≤0.03	24.0-26.0	6.0-8.0	≤1.00	≤0.030	≤0.010	3.0-4.0	≤1.00	0.5-1.00	0.2-0.3	-
	2304	S32304	≤0.03	21.5-24.5	3.0-5.5	≤2.50	≤0.040	≤0.030	0.05-0.6	≤1.00	0.05-0.6	0.05-0.2	-
	329	1.4460	≤0.08	23.00-28.00	2.00-5.00	≤1.00	≤0.040	≤0.030	1.00-2.00	≤0.75	-	-	-
Ferrite	409	S40900	≤0.03	10.50-11.70	0.5	≤1.00	≤0.040	≤0.020	-	≤1.00	-	≤0.030	Ti6（C+N)-0.50 Nb:0.17
	430	1Cr17	≤0.12	16.00-18.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	444	S44400	≤0.025	17.50-19.50	1	≤1.00	≤0.040	≤0.030	1.75-2.5	≤1.00	-	0.035	-
	446	S44600	≤0.20	23.00-27.00	0.75	≤1.50	≤0.040	≤0.030	1.50-2.50	≤1.00	-	≤0.25	-
Martensite	410	1Cr13	0.08-0.15	11.50-13.50	0.75	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	410S	*	≤0.080	11.50-13.50	0.6	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	416	Y1Cr13	≤0.15	12.00-14.00	3.0	≤1.25	≤0.060	≥0.15	-	≤1.00	-	-	-
	420	2Cr13	≥0.15	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	420J2	3Cr13	0.26-0.35	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	431	1Cr17Ni2	≤0.20	15.00-17.00	1.50-2.50	≤1.00	≤0.040	≤0.030	-	≤0.80	-	-	-
	440C	11Cr17	0.95-1.20	16.00-18.00	-	≤1.00	≤0.040	≤0.030	0.75	≤1.00	-	-	-
PH	630	17-4PH	≤0.07	15.00-17.50	3.00-5.00	≤1.00	≤0.035	≤0.030	-	≤1.00	3.00-5.00	-	Nb 0.15-0.45
	631	17-7PH	≤0.09	16.00-18.00	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤1.00	≤0.50	-	Al 0.75-1.50
	632	15-5PH	≤0.09	14.00-16.00	3.50-5.50	≤1.00	≤0.035	≤0.030	2.00-3.00	≤1.00	2.5-4.5	-	Al 0.75-1.50
