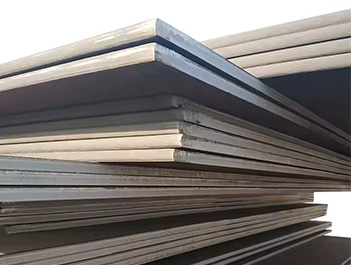

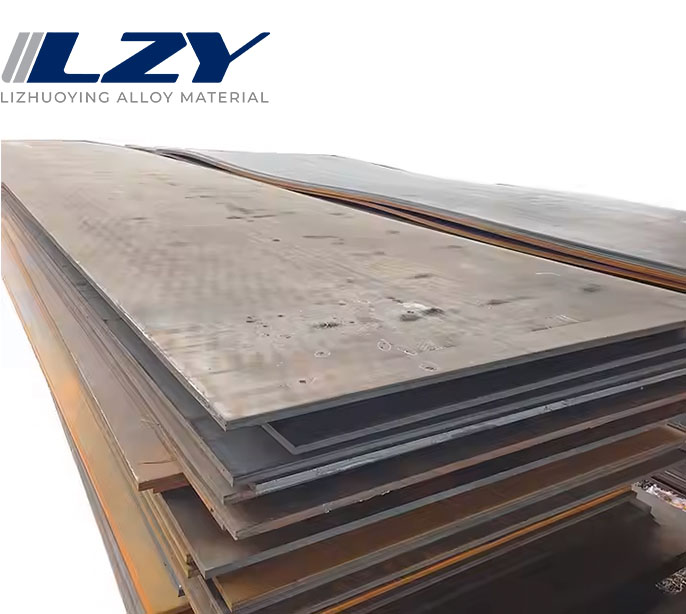

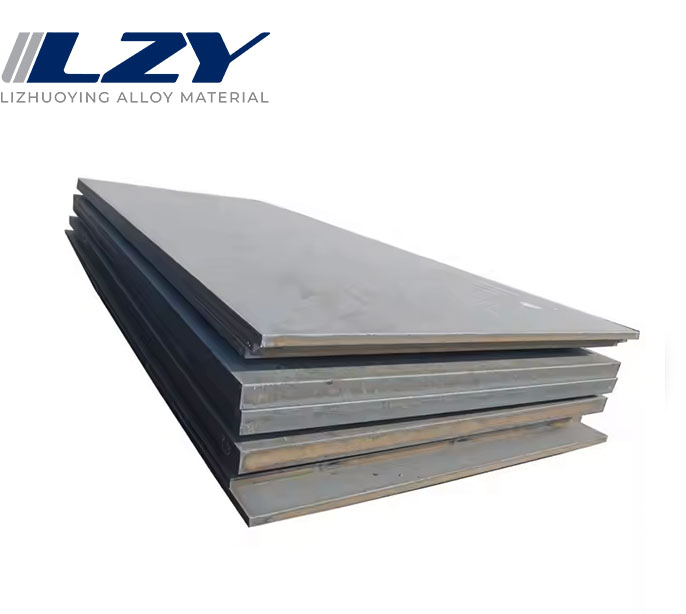

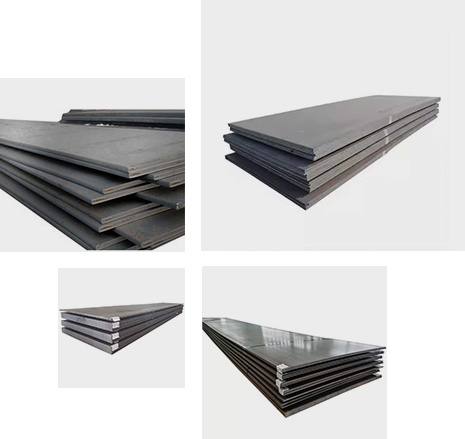

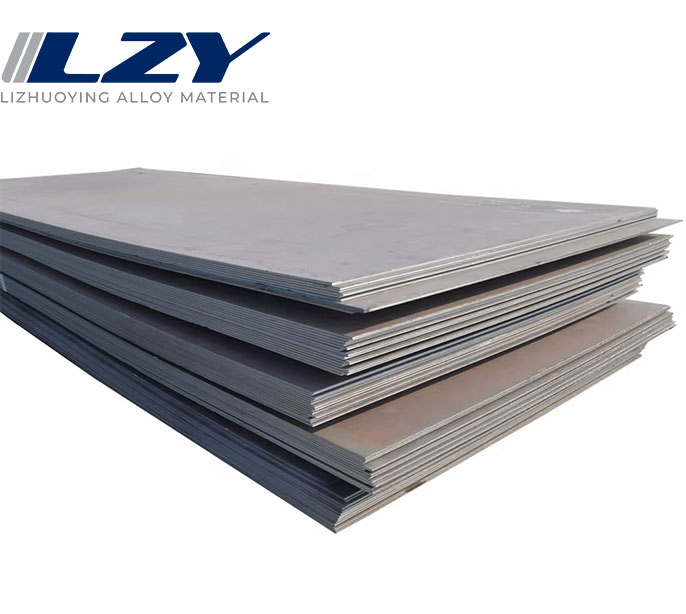

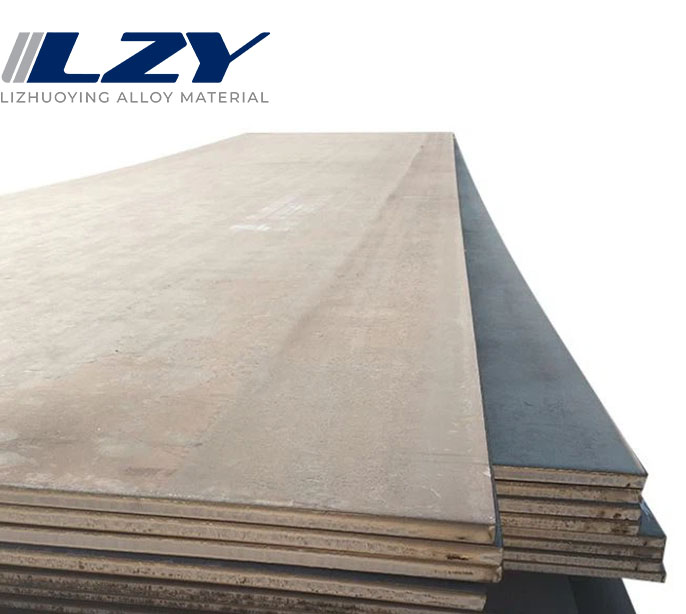

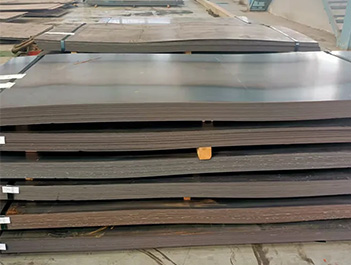

Shipbuilding Steel Plate

Shipbuilding steel plate is used for shipbuiling's hull structure and platform. The shipbuilding steel plate grade A is the common tensile strength steel. It has good toughness properties and higher strength, strong corrosion-resistance,the processing properties,and welding properties. can be used in the manufacture of the ship's hull structure whose weight is below 10000 tons,and usually do navigation around coastal and river area.

Whatsapp Send E-mail

Specification:

- Thickness: 0.15mm-400mm, or as customized
- Width: 1250mm-2500mm, or as customized
- Length: 1000mm-12000mm, or as customized
- Grade: A36, A53, A283, A285, A369, Gr.A, Gr.B, Gr.C, GR50, GR55, Q195, Q215, Q235, Q345, Q355, Q265, Q275, S25C, S35C, DC01, DC02, SS400, SS490, SM400, SPHC, SPHD, SPHE, SPHF, SPHT1, SPHT2, SPH3, SPH4, etc
- Standard: AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN，etc
- Certification: ISO SGS BV
- Surface: Black painted, PE coated, Galvanized, Galvalumed, etc.

Introduce:

The Shipbuilding steel plate can be divided into general strength structural steel and high strength structural steel according to its minimum yield point strength level. We supply and exports 2 types of ship steel, medium strength shipbuilding plate and high strength shipbuilding plate. All steel plate product can be manufactured according to Society LR, ABS, NK, GL, DNV, BV, KR, RINA, CCS, etc.

Chemical Composition

Grade	C%≤	Mn %	Si %	p % ≤	S % ≤	Al %	Nb %	V %
A	0.22	≥ 2.5C	0.10~0.35	0.04	0.4	—	—	—
B	0.21	0.60~1.00	0.10~0.35	0.04	0.4	—	—	—
D	0.21	0.60~1.00	0.10~0.35	0.04	0.04	≥0.015	—	—
E	0.18	0.70~1.20	0.10~0.35	0.04	0.04	≥0.015	—
A32 D32 E32	0.18	0.70~1.60 0.90~1.60 0.90~1.60	0.10~0.50	0.04	0.04	≥0.015	—	—
A36 D36 E36	0.18	0.70~1.60 0.90~1.60 0.90~1.60	0.10~0.50	0.04	0.04	≥0.015	0.015~0.050	0.030~0.10

Unfold

Application

Steel plate and plate cut from coil can be used in a variety of industries and applications, as it is a very versatile and commonly used form of steel.

Some common industries and applications include:

Construction

Carbon steel has a large number of applications in the field of construction, mainly used in building structures and reinforced concrete formwork.
Shipbuiding

Carbon steel also has important applications in shipbuilding. It is mainly used to build the main structure of the ship, such as the hull, deck, bow, stern and other parts.
Oil and Gas

Widely used in oil and gas extraction, transportation and processing. It is used in the manufacture of oil well pipes, pipelines, drilling pipes and other petroleum equipment.
Mechanical

Carbon steel is widely used to manufacture a variety of mechanical equipment and parts, such as automobiles, ships, airplanes and construction machinery etc.
