DN: 2.4663a
UNS: N06617
|
| C | Mn | Fe | S | Ni | Si | Cr | Mo | Co | Ti |
| Min | 0.05 | – | – | – | 44.5 | – | 20.0 | 8.0 | 10.0 | – |
| Max | 0.15 | 1.0 | 3.0 | 0.015 | – | 1.0 | 24.0 | 10.0 | 15.0 | 0.6 |
| Temperature | Electrical | Thermal | Coefficient | Specific Heat*** |
| Resistivity | Conductiviy* | of Expansion** | ||
| °F | ohm-circ mil/ft | Btu – in/ft² – hr – °F | 10(-6)in./in./°F | Btu/lb-°F |
| 78 | 736 | 94 | — | 0.1 |
| 200 | 748 | 101 | 6.4 | 0.104 |
| 400 | 757 | 113 | 7 | 0.111 |
| 600 | 764 | 125 | 7.4 | 0.117 |
| 800 | 770 | 137 | 7.6 | 0.124 |
| 1000 | 779 | 149 | 7.7 | 0.131 |
| 1200 | 793 | 161 | 8 | 0.137 |
| 1400 | 807 | 173 | 8.4 | 0.144 |
| 1600 | 803 | 185 | 8.7 | 0.15 |
| 1800 | 824 | 197 | 9 | 0.157 |
| 2000 | — | 209 | 9.2 | 0.163 |
| °C | æê-m | W/m-°C | æm/m/°C | J/kg-°C |
| 20 | 1.222 | 13.4 | — | 419 |
| 100 | 1.245 | 14.7 | 11.6 | 440 |
| 200 | 1.258 | 16.3 | 12.6 | 465 |
| 400 | 1.278 | 19.3 | 13.6 | 515 |
| 600 | 1.308 | 22.5 | 14 | 561 |
| 800 | 1.342 | 25.5 | 15.4 | 611 |
| 1000 | 1.378 | 28.7 | 16.3 | 662 |
| Temperature | Tensile | Shear | Poisson’s |
| Modulus | Modulus | Ratio** | |
| °F(°C) | 10(6)psi(GPa) | 10(6)psi(GPa) | |
| 74(25) | 30.6(211) | 11.8(81) | 0.3 |
| 200(100) | 30.0(206) | 11.6(80) | 0.3 |
| 400(200) | 29.0(201) | 11.2(77) | 0.3 |
| 600(300) | 28.0(194) | 10.8(75) | 0.3 |
| 800(400) | 26.9(188) | 10.4(72) | 0.3 |
| 1000(500) | 25.8(181) | 9.9(70) | 0.3 |
| 1200(600) | 24.6(173) | 9.5(66) | 0.3 |
| 1400(700) | 23.3(166) | 9.0(64) | 0.3 |
| 1600(800) | 21.9(149) | 8.4(61) | 0.3 |
| Product | Production | Yield Strength (0.2% Offset) | Tensile Strength | Elongation, | Reduction | Hardness | ||
| Form | Method | % | of Area, | BHN | ||||
| 1000 psi | MPa | 1000 psi | MPa | % | ||||

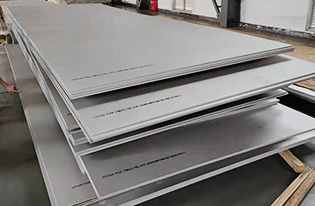

| Plate | Hot Rolling | 46.7 | 322 | 106.5 | 734 | 62 | 56 | 172 |

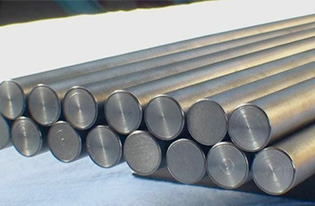

| Bar | Hot Rolling | 46.1 | 318 | 111.5 | 769 | 56 | 50 | 181 |

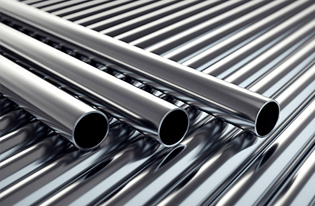

| Tubing | Cold Drawing | 55.6 | 383 | 110 | 758 | 56 | — | 193 |

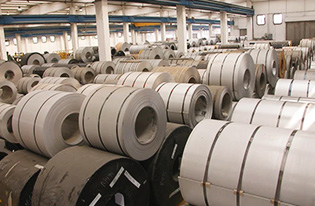

| Sheet or Strip | Cold Rolling | 50.9 | 351 | 109.5 | 755 | 58 | — | 173 |
Inconel 617 can be heat treated to optimize its properties, including solid solution treatment and aging treatment. Solid solution treatments can increase its high temperature strength, while aging treatments help to further improve its organization and properties.
Inconel 617 has a higher work hardening rate than austenitic stainless steels.
Inconel 617 is a nickel-based alloy with excellent high-temperature properties and creep resistance, and is used in a wide range of applications in several industrial sectors.
1.Chemical and Petrochemical Industry
2.Aerospace
3.Nuclear Energy
4.Food and Pharmaceutical
5.Etc
