Inconel

UNS: N06601 AMS: 5715; 5870

601

Home > Grades > Inconel > 601

Get a Free Quote NOW

Equivalent

Standards EN AMS ASTM UNS
Material Designation 2.4851 5715; 5870 B 168 N06601

Chemical Composition (%)



C

Mn

Fe

S

Ni

Si

Cr

Min

–

–

Balance

–

63.0

–

21.0

Max

0.1

1.0



0.015

58.0

1.0

25.0

Modulus of Elasticity

Temperature,
           °F		 Modulus of Elasticity, 103  ksi Poisson’s Ratioa Temperature,
°C		 Modulus of Elasticity, GPa Poisson’s Ratioa
 Tension  Torsion Tension Torsion
70     29.95     11.77  0.272   20  206.5  81.2  0.272
    200     29.42     11.49  0.280       100  202.4  79.2  0.278
    400     28.50     11.10  0.284       200  196.8  76.5  0.286
    600     27.59     10.67  0.293       300  191.2  73.8  0.296
    800     26.57     10.21  0.301       400  184.8  71.2  0.299
  1000     25.43       9.68  0.314       500  178.2  68.1  0.308
  1200     24.12       9.05  0.333       600  170.8  64.3  0.327
  1400     22.48       8.32  0.351       700  161.3  60.2  0.340
  1600     20.54       7.52  0.366       800  150.2  55.6  0.350
  1800     18.43       6.63  0.390       900  137.9  50.3  0.370
  2000     16.20       5.68  0.426  1000  124.7  44.7  0.395

Mechanical Property

Form and Tensile Strength                             Yield Strength (0.2% Offset) Elongation, Hardness,
Condition ksi                          MPa                          ksi MPa % Rb
ROD and BAR
   Hot-Finished
   Annealed
85-120
80-115
     585-825
    550-790
35-100
30-60
240-690
205-415
60-15
70-40
65-95
60-80
PLATE
   Annealed		 80-100 550-690 30-45 205-310 65-45 60-75
SHEET
   Cold-Rolled
   Annealed
115-190
85-100
     790-1310
    585-690
100-175
30-50
690-1205
205-345
20-2
55-35		 –
65-80
STRIP
   Cold-Rolled
   Annealed
115-190
85-100
     790-1310
    585-690
100-175
30-50
690-1205
205-345
20-2
55-35		 –
65-80
TUBE and PIPE
   Cold-Drawn
   Annealed		 80-110 550-760 30-60 205-415 65-35 70-95
WIRE
   Cold-Drawn
   Annealed
120- 205
90-115
     825-1415
    620-790
100-195
35-70
690-1345
240-480
20-3
45-35		 –
–
ALL FORMS
   Solution-Treated		 75-110 515-760 25-55 160-380 75-40 55-95

Tensile Properties

Form Size

in.                mm		 Annealing
Temperaturea
°F                  °C		    Tensile
Strength		      Yield Strength
     (0.2% Offset)		 Elongation,
%
ksi                MPa                ksi                MPa
Hot-Finished Rod 0.625 Dia. 16 Dia. 2000       1090       107.5  741    42.1  290  47
Hot-Finished Rod 0.625 Dia. 16 Dia. 1800   980       112.0  772    66.0  455  41
Hot-Finished Bar 0.5 x 1.0 13 x 25 2000       1090       102.8  709    37.6  259  46
Hot-Finished Bar 2.5 x 2.5 64 x 64 2000       1090   91.0  627    31.0  214  57
Hot-Finished Bar 0.125 x 2.0 3.2 x 51 1800   980       101.6  701    47.1  248  42
Hot-Finished Plate 0.312  7.9  2000       1090   99.7  687    40.7  281  46
Cold-Rolled Sheet 0.125  3.2  2000       1090   97.9  675    42.3  292  46
Cold-Rolled Sheet 0.062  1.57  1900       1040       115.5  796    61.0  421  36

Available Products

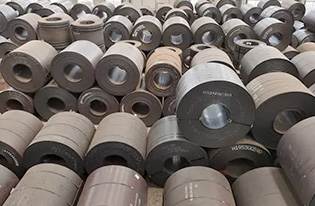

  • COIL

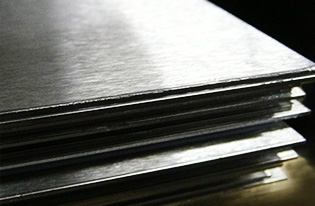

  • SHEET/PLATE

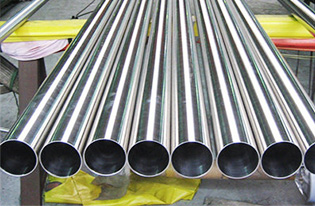

  • TUBE

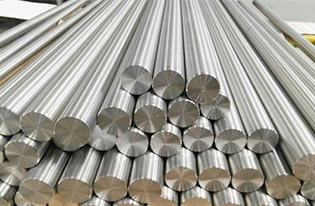

  • ROD
  • WIRE
  • FITTINGS

Advantages

INCONEL 601 also has good toughness and ductility, as well as excellent creep resistance, which makes it less prone to significant deformation under prolonged loads.

INCONEL 601 has good resistance to a wide range of corrosive media, including oxidizing acids and chlorides. It maintains good corrosion resistance at high temperatures and has adequate resistance to organic acids such as acetic, formic and stearic acids, as well as inorganic acids such as nitric, hydrochloric, sulfuric, hydrofluoric and alkaline solutions.

Applications

1.Chemical and Petrochemical Industry

2.Aerospace

3.Nuclear Energy

4.Food and Pharmaceutical

5.Etc
