Inconel

UNS: N06600 AMS: 5540, 5665

600

Home > Grades > Inconel > 600

Get a Free Quote NOW

Equivalent

Standards EN ISO UNS UK AFNOR
Material designation 2.4816 – NiCr15Fe NiCr15Fe8 N06600 NA 14 NC15Fe

Chemical Composition (%)



C

Mn

Fe

S

Ni

Si

Copper

Min

–

–

6.0

–

72.0

–

–

Max

0.1

1.0

10.0

0.015

–

0.50

0.5

Standards

Product form DIN DIN EN  VdTÜV ASME NACE
Others
Plate and sheet 17750
17742		 10095     305  SB 168   MR 0175/ISO
   15156
  MR 0103		 SAE AMS 5540
ISO6208
ISO 9722
Strip 17742  10095*    305  B168 SB 168 SEW 470
SAE AMS 5540
ISO 6208
Bar 17752  10095     305  B 166 SB 166  MR0175/SO
17742  B564 SB 564 15156
MR 0103

Physical properties

Temperature Specific heat capacity Thermal conductivity   Electrical
resistivity

  μΩ ·cm		 Modulus of elasticity Coefficient of thermal ex-
pansion
℃ F
.		 GPa   10³psi
20  68  455    0.109  14.8  102.7    103  214    31.0
100  212  475    0.113  15.8  109.6    104  209    30.3  13.7    7.61
200  392  495    0.118  17.0  117.9    106  205    29.7  14.1    7.83
300  572  508    0.121  18.4  127.7    107  200    29.0  14.4  8.0
400  752  525    0.125  20.0  138.8    108  194    28.1  14.8    8.22
500  932  550    0.131  22.0  152.6    111  187    27.1  15.1    8.39
600  1,112 572    0.137  24.0  166.5    112  180    26.1  15.4    8.56
700  1,292 602    0.144  25.7  178.3    112  172    24.9  15.8    8.78
800  1,472 620    0.148  27.5  190.8    112  163    23.6  16.1    8.94
900  1,652 630    0.15  29.4    204    113  153    22.2  16.4    9.11
1,000 1,832 635    0.152  31.2  216.5    114  143    20.7  16.9    9.39

Mechanical properties

Temperature   Yield strength
   Rp0.2		   Tensile strength
  Rm		 Elongation
A
℃ °F MPa ksi   MPa    ksi %
20  68  200  29.0    550     79.8  30
100  212  180  26.1    520     75.4
200  392  165  23.9    500     72.5
300  572  155  22.5    485     70.3
400  752  150  21.8    480     69.6
450  842  145  21.0    475     68.9

Product           Heat treatment         Dimensions                                              Yield stress                                   Tensile strength                           Elongation
form                                                                                                                              Rp 1,0                                                                           Rm                                                                                A
mm                            in                               MPa                      ksi                      MPa                     ksi                       %
Sheet              annealed                                                                                            ≥ 240                   ≥34.8                   ≥ 550                   ≥79.8                   ≥ 30
Strip                annealed                                                                                            ≥ 240                   ≥34.8                   ≥ 550                   ≥79.8                   ≥ 30
Bar                  annealed                                                                                            ≥ 240                   ≥34.8                   ≥ 550                   ≥79.8                   ≥ 30
Forging           annealed                                                                                            ≥ 240                   ≥34.8                   ≥ 550                   ≥79.8                   ≥ 30
Wire                annealed                      0.8                            0.0315                                                                                   ≥ 600                   ≥87                      ≥ 30
Wire                annealed                      0.3 – 0.8                  0.0118 – 0.0315                                                                  ≥ 600                   ≥87                      ≥ 15
Wire                annealed                      0.1 – 0.3                  0.00394 – 0.0118                                                                ≥ 600                   ≥87                      ≥ 10
Sheet              solution-annealed                                                                            ≥ 180                   ≥26.1                   ≥ 500                   ≥72.5                   ≥ 35
Strip                solution-annealed                                                                            ≥ 180                   ≥26.1                   ≥ 500                   ≥72.5                   ≥ 35
Bar                  solution-annealed                                                                            ≥ 180                                                ≥ 500                   ≥72.5                   ≥ 30
Forging           solution-annealed                                                                            ≥ 180                                                ≥ 500                   ≥72.5                   ≥ 30

Available Products

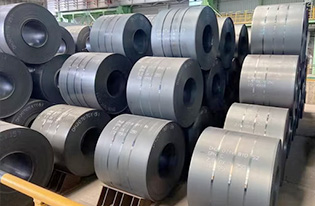

  • COIL

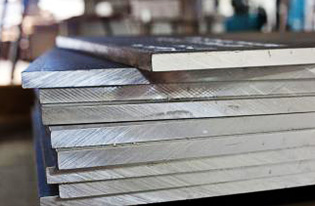

  • SHEET/PLATE
  • TUBE

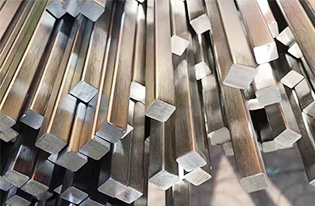

  • ROD
  • WIRE
  • PIPE
  • FITTINGS

Advantages

INCONEL 600 also has good toughness and ductility, as well as excellent creep resistance, which makes it less prone to significant deformation under prolonged loads.

INCONEL 600 has good resistance to a wide range of corrosive media, including oxidizing acids and chlorides. It maintains good corrosion resistance at high temperatures and has adequate resistance to organic acids such as acetic, formic and stearic acids, as well as inorganic acids such as nitric, hydrochloric, sulfuric, hydrofluoric and alkaline solutions.

Applications

1.Chemical and Petrochemical Industry

2.Aerospace

3.Nuclear Energy

4.Food and Pharmaceutical

5.Etc
