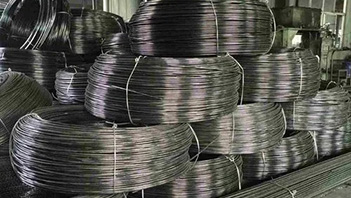

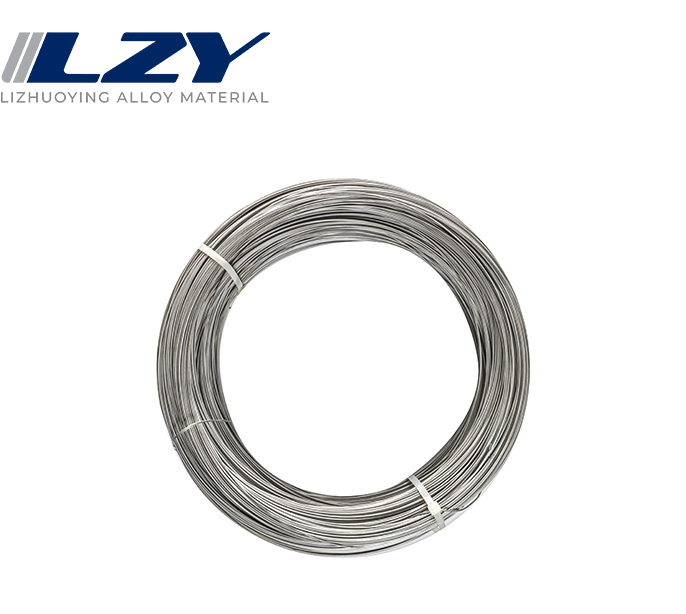

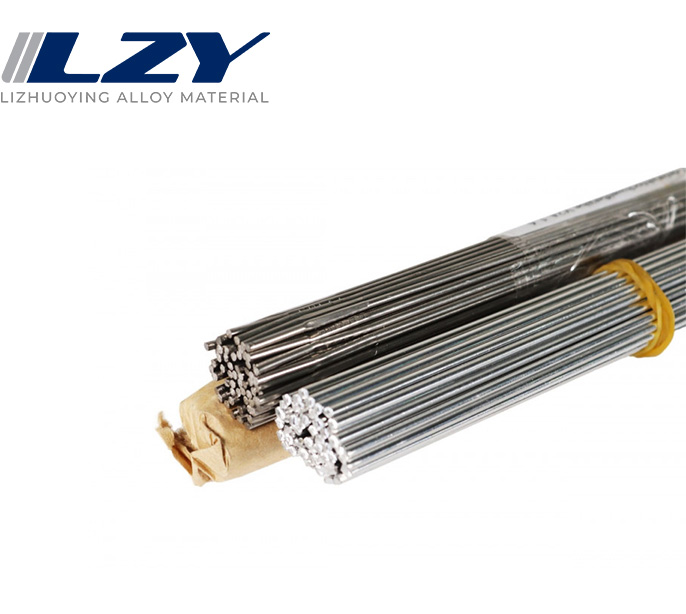

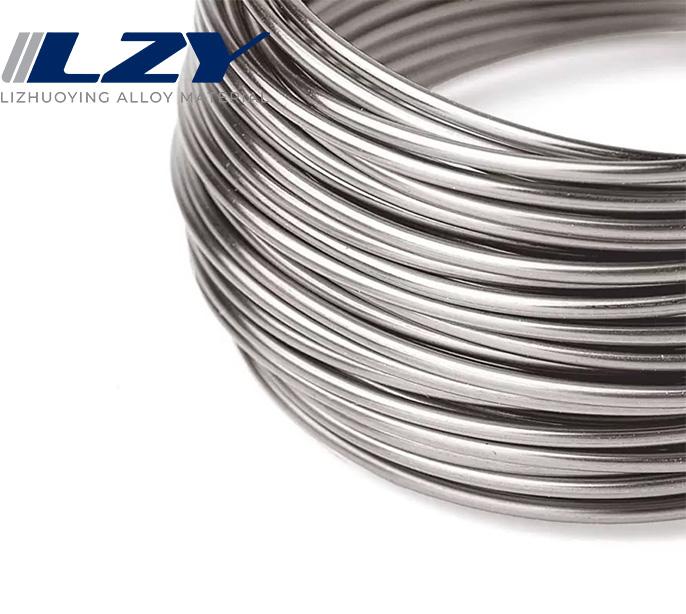

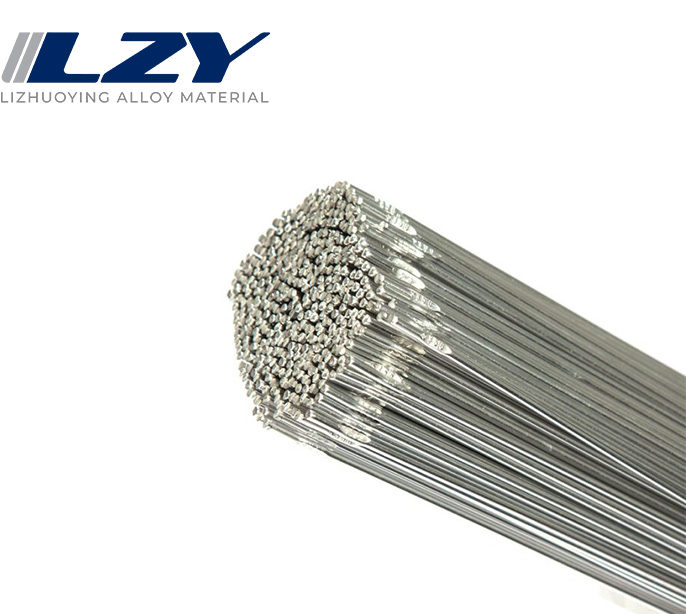

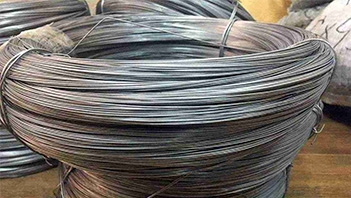

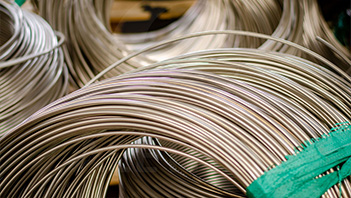

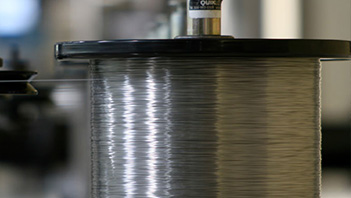

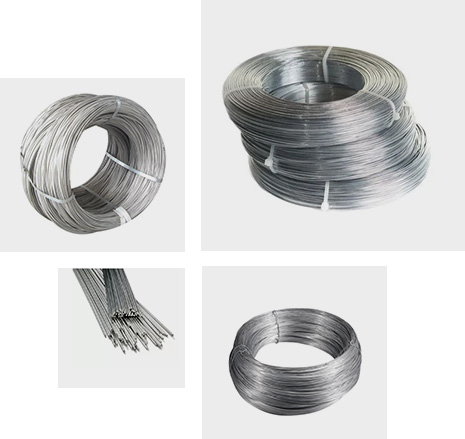

Hastelloy steel wire, or Hastelloy steel wire, is a high-performance alloy material that is widely used in a number of industrial applications because of its excellent corrosion and high-temperature resistance.
Excellent corrosion resistance: Hastelloy steel wire can maintain stability in high temperature, high salinity and chemical corrosive environments, suitable for a variety of corrosive media.
High strength and good toughness: Hastelloy steel wire has high strength, while maintaining good toughness, can withstand greater mechanical stress and not easy to fracture.
Excellent processing performance: Hastelloy steel wire has good cold working performance and welding performance, can be processed and welded in a wide range of temperatures.
High-temperature stability: in a high-temperature environment, Hastelloy steel wire strength and hardness can be maintained at a high level, and at the same time has a good resistance to oxidation and thermal corrosion resistance.
| Generic term | UNS No | DIN/EN | Composition |
| Hastelloy C-276 | N10276 | 2.4819 | 57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C |
| Hastelloy C-4 | N06455 | 2.461 | 65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C |
| Hastelloy C-22 | N06022 | 2.4602 | 56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C |
| Hastelloy C-2000 | N06200 | 2.4675 | 59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C |
| Hastelloy X | N06002 | 2.4665 | 47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B |
| Hastelloy B-2 | N10665 | 2.4617 | 69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C |
| Hastelloy B-3 | N10675 | 2.466 | 65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C |
| Hastelloy G-30 | N06030 | 43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C | |
| Hastelloy G-35 | N06035 | 58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C |
Hastelloy steel wire is available in a variety of grades, each with different compositions and properties. Common grades include, but are not limited to, the following:
Hastelloy C-276 Wire: A nickel-chromium-molybdenum alloy steel wire containing tungsten, which provides excellent corrosion resistance, especially in reducing media. It contains very low levels of silicon and carbon, further enhancing its corrosion resistance.
Hastelloy G-30 wire: a high-performance nickel-based alloy wire containing high percentages of chromium and cobalt, giving it excellent corrosion resistance and high-temperature performance.
Hastelloy S wire: a strong, corrosion-resistant alloy steel wire with good resistance to oxidation and corrosion. It is mainly used in the manufacture of corrosion-resistant equipment and piping, especially in acidic, oxidizing and high-temperature environments.
