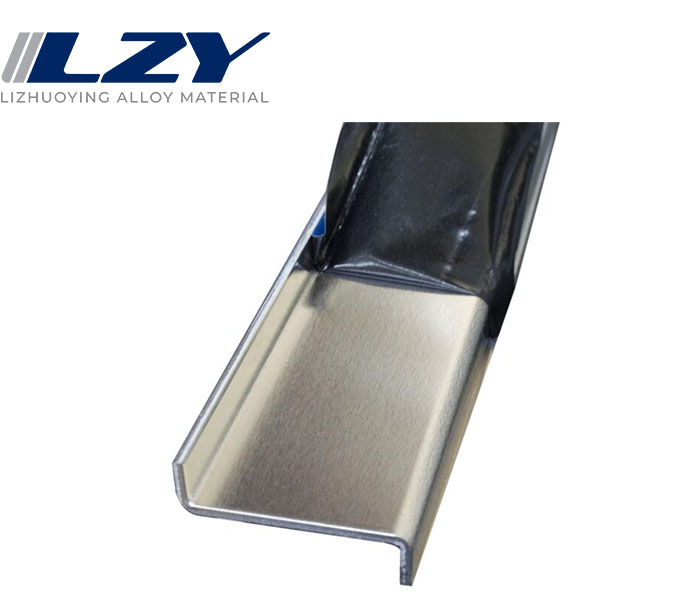

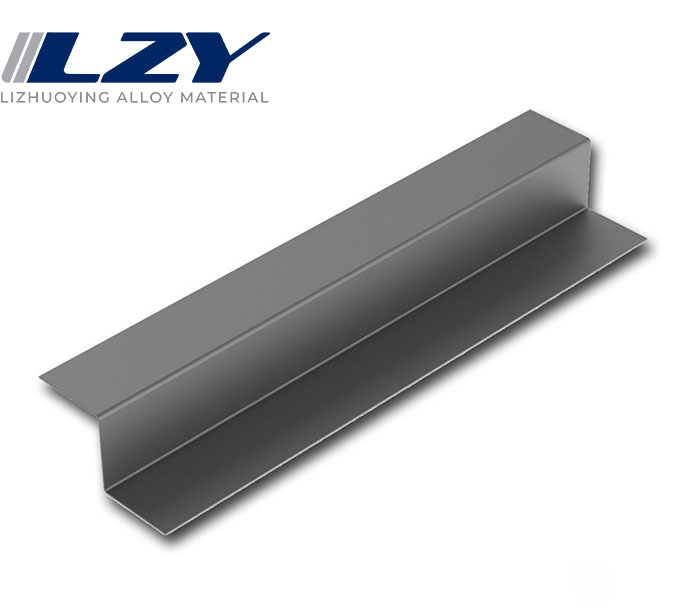

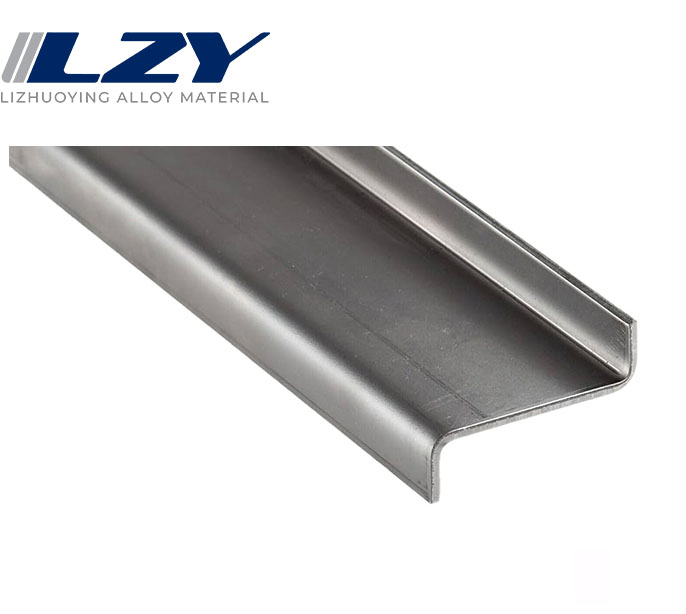

Unlike structural, extruded carbon steel Z profile, the custom Z-Channel will be cut to your specifications and bent in a press break. Therefore, the custom Z-Channel will give customers more variety of fabrication options, including a wide range of bending angles, hemmed edges (on thinner gauge material), flange options, uneven leg sizes, etc.
Carbon steel Z profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of Z profile, Z purlin profile, Z tape profile, roof profile etc.
| ASTM | JIS | SAE | Application |
| A569 A635 A659 A1011 CS Type A, B, C |
G3131 SPHC | 1006~1025 | Commercial Quality |
| - | G3131 SPHD | 1006-1010 | Drawing Quality |
| A622 A1011 DS Type A, B |
G3131 SPHE | 1006~1010 | Deep Drawing Quality |
| A36 A283 GR.C A570 GR.30~40 A1001 SS GR.30~40 |
G3101 SS330 SS400 G3106 SM400A G3132 SPHT1 SPHT2 SPHT3 |
1010~1025 | General Structure (T.S. < 490 N/mm2) |
| A570 GR.45~50 A607 GR.45~70 A1011 SS GR.45, 50 A1011 HSLAS GR.45~70 |
G3101 SS490 G3106 SM490A SM490A SM490YA G3132 SPH4 |
J1392 050X | General Structure (T.S. ≧ 490 N/mm2) |
Uses of carbon steel z bar include energy, construction, automotive, marine and offshore industries, telecommunication, agriculture and general fabrication.
Carbon steel z bar has a large number of applications in the field of construction, mainly used in building structures and reinforced concrete formwork.
Carbon steel z bar also has important applications in shipbuilding. It is mainly used to build the main structure of the ship, such as the hull, deck, bow, stern and other parts.
Widely used in oil and gas extraction, transportation and processing. It is used in the manufacture of oil well pipes, pipelines, drilling pipes and other petroleum equipment.
Carbon steel z bar is widely used to manufacture a variety of mechanical equipment and parts, such as automobiles, ships, airplanes and construction machinery etc.
