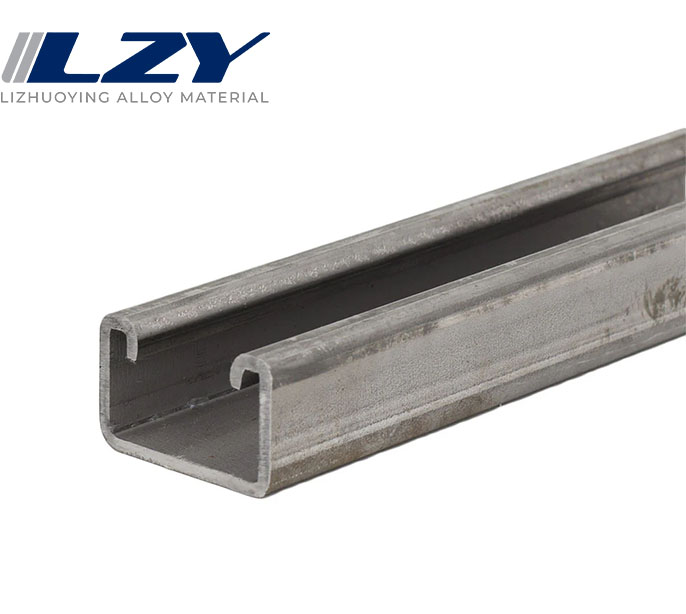

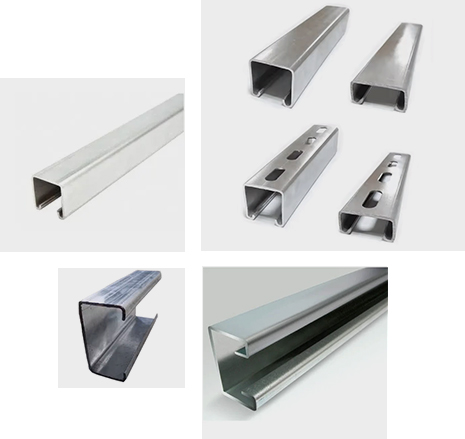

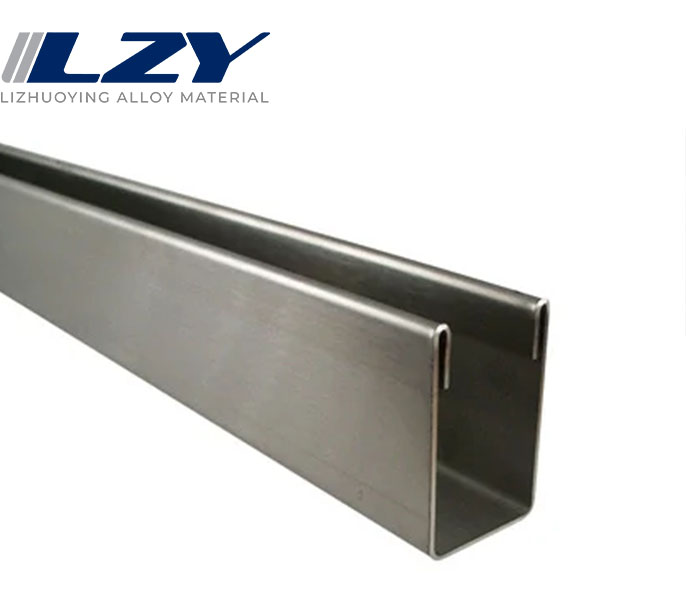

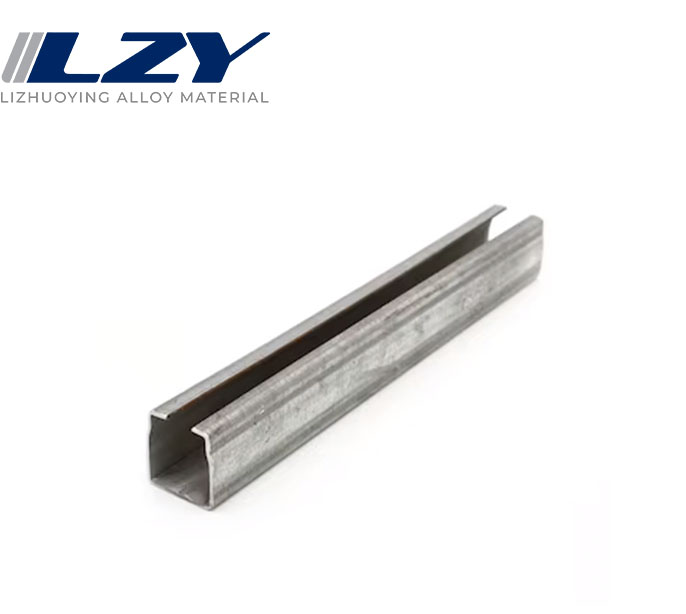

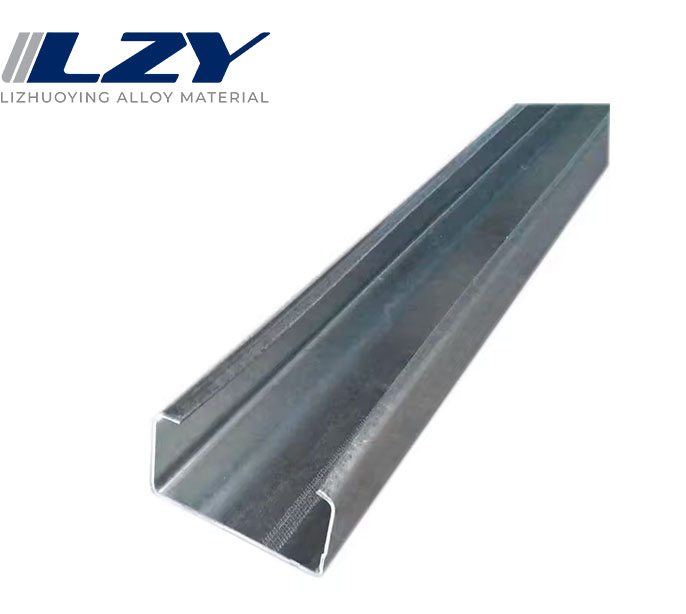

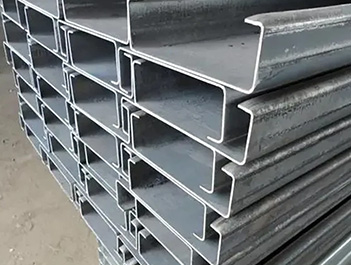

Carbon Steel C is classified into "C" and "U" types depending on its shapes. Therefore there are two standards to show the channel dimensions - UPE and UPN. UPE is for the C channel steel with parallel flanges while UPN for the U channel steel with tapered flanges. Carbon steel channel is widely used in construction and manufacturing.
Carbon steel C is widely used in construction and manufacturing. The application as follow: 1.Tracks & sliders for machines, doorways, etc.. 2.Posts and supports for building corners, walls & railings. 3.Protective edges for walls. 4.Decorative elements for constructions like ceiling channel system. 5.Frames or framing material for construction, machines.
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
| UPN80 | 80 | 45 | 6 | 8 | 8.64 |
| UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
| UPN120 | 120 | 55 | 7 | 9 | 13.4 |
| UPN140 | 140 | 60 | 7 | 10 | 16 |
| UPN160 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180 | 70 | 8 | 11 | 22 |
| UPN200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
| UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
Uses of carbon steel c bar include energy, construction, automotive, marine and offshore industries, telecommunication, agriculture and general fabrication.
Carbon steel c bar has a large number of applications in the field of construction, mainly used in building structures and reinforced concrete formwork.
Carbon steel channel bar also has important applications in shipbuilding. It is mainly used to build the main structure of the ship, such as the hull, deck, bow, stern and other parts.
Widely used in oil and gas extraction, transportation and processing. It is used in the manufacture of oil well pipes, pipelines, drilling pipes and other petroleum equipment.
Carbon steel c bar is widely used to manufacture a variety of mechanical equipment and parts, such as automobiles, ships, airplanes and construction machinery etc.
